Details

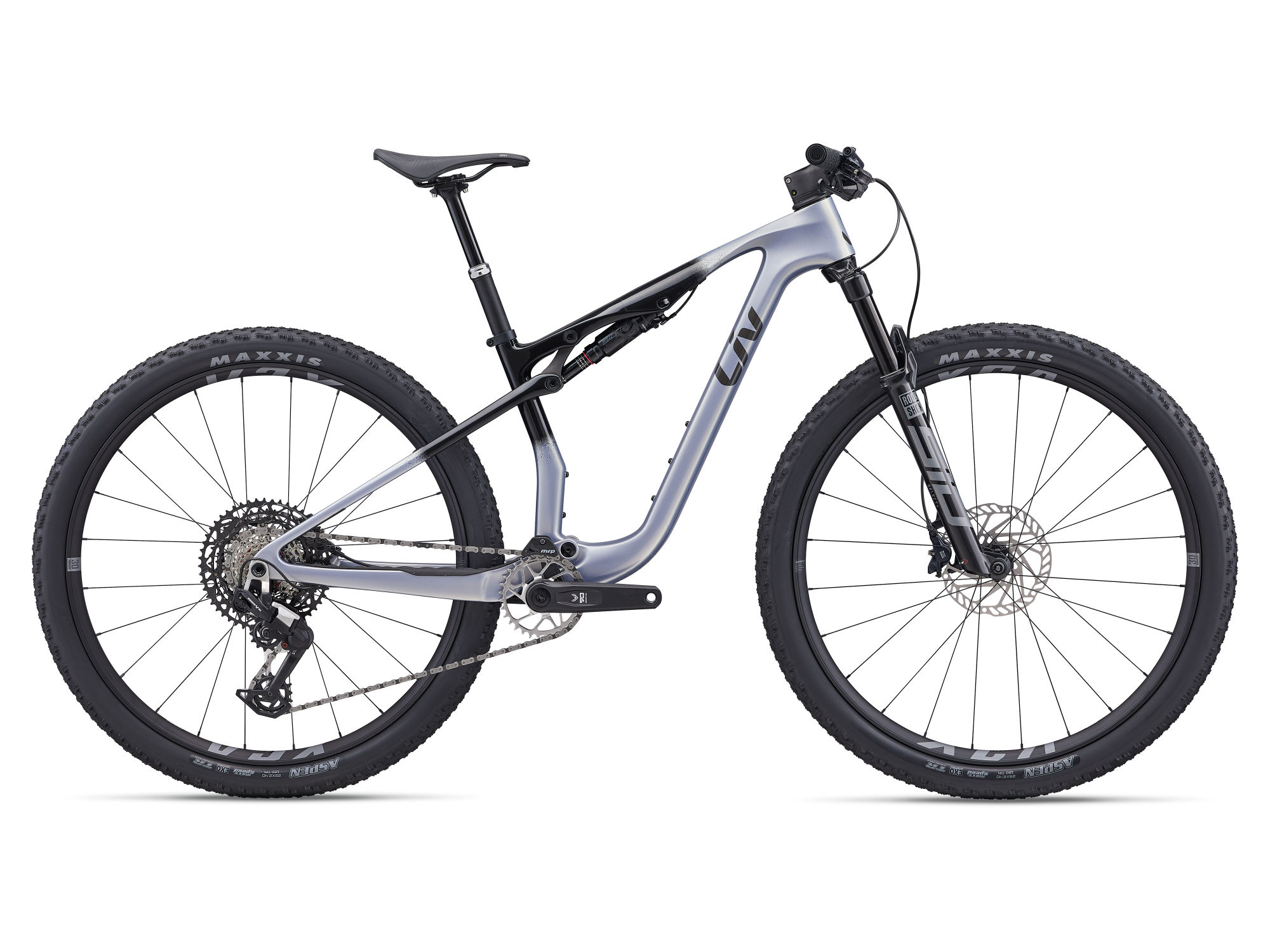

Built for racers obsessed with speed, performance, and control, the new Pique Advanced SL is engineered to deliver. Components are designed to work seamlessly together as one optimized system. The 120mm single-pivot FlexPoint Pro rear suspension is now semi-integrated with your top tube for a lighter, more efficient ride. And the flip chip lets you adjust your geometry for the course ahead and the fire inside.
Key Performance Factors
Built for speed
The new Advanced SL-grade composite frame is the lightest we've ever designed, achieving exceptional stiffness-to-weight so every pedal stroke returns power almost effortlessly, for swift and decisive acceleration and climbing. Tuned specifically for XC racing, the reengineered FlexPoint Pro Suspension is lighter, more compact, and more responsive.
Built for performance
The Pique Advanced SL is designed as a single optimized system. The new one-piece handlebar-stem with fully integrated cable routing keeps things light, clean, and responsive. Giant WheelSystems with Wide Guard rims give you robust sidewalls so you can run lower tire pressure for extra grip and puncture protection.
Built for results
The updated FlexPoint Pro suspension system offers 120mm of smooth, active rear-wheel travel, paired with a 120mm fork, giving you the control and stability you need when things get technical. The two-position flip chip lets you adjust your geometry for the perfect handling for the course. And the suspension lock-out provides hardtail-like efficiency when you're climbing a hill or a podium.
| Frame Size | X-Small | Small | Medium | Large |
|---|---|---|---|---|
| Flip Chip | Low | High | Low | High | Low | High | Low | High |
| Seat Tube Length (mm) | 400 | 410 | 440 | 470 |
| Seat Tube Angle (degree) | 75.5° | 76.0° | 75.5° | 76.0° | 75.5° | 76.0° | 75.5° | 76.0° |
| Top Tube Length (mm) | 555 | 554 | 572 | 571 | 594 | 593 | 611 | 610 |
| Head Tube Length (mm) | 90 | 95 | 105 | 115 |
| Head Tube Angle (degree) | 66.5° | 67.0° | 66.5° | 67.0° | 66.5° | 67.0° | 66.5° | 67.0° |
| Fork Rake (mm) | 44 | 44 | 44 | 44 |
| Trail (mm) | 116 | 112 | 116 | 112 | 116 | 112 | 116 | 112 |
| Wheelbase (mm) | 1121 | 1120 | 1138 | 1138 | 1162 | 1162 | 1181 | 1180 |
| Chain Stay Length (mm) | 437 | 435 | 437 | 435 | 437 | 435 | 437 | 435 |
| Bottom Bracket Drop (mm) | 51 | 45 | 51 | 45 | 51 | 45 | 51 | 45 |
| Stack (mm) | 602 | 599 | 607 | 603 | 616 | 612 | 625 | 622 |
| Reach (mm) | 399 | 405 | 415 | 421 | 435 | 440 | 450 | 455 |
| Stand Over Height (mm) | 772 | 778 | 770 | 776 | 765 | 765 | 759 | 765 |
| Handlebar Width (mm) | 780 | 780 | 780 | 780 |
| Stem Length (mm) | 60 | 60 | 70 | 70 |
| Crank Length (mm) | 165 | 170 | 170 | 170 |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| X-Small | 150 - 163 cm | 4'11" - 5'4" |
| Small | 158 - 169 cm | 5'2" - 5'7" |
| Medium | 164 - 175 cm | 5'5" - 5'9" |
| Large | 170 - 183 cm | 5'7" - 6'0" |
Specs
| Bottom Bracket | SRAM DUB, press fit |
|---|---|
| Frame | Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle |
| Fork | RockShox Sid Select+ 3P, 120mm, Charger Race Day 2 damper, Boost 15x110, 44mm offset, remote lockout |
| Rear Shock | RockShox SidLuxe Select+, RL damper, Solo Air, 210/50, TwistLoc Ultimate |
| Rims | Giant XCA WheelSystem |
| Hubs |
Front: Giant MTB alloy, 6-bolt Rear: Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes | Sapim |
| Tires | Maxxis Aspen 29x2.4, foldable, 120tpi, MaxxSpeed, EXO, tubeless |
| Crankset |
SRAM 90 Transmission, 32t, 55mm chainline XS: 165mm, S:170mm, M:170mm, L:170mm |
| Shifters | SRAM Eagle 90 mechanical, 1x12 |
| Rear Derailleur | SRAM Eagle 90 Transmission |
| Cassette/Freewheel | SRAM 70 1270, 10x52 |
| Chain | SRAM 70 Transmission |
| Brakes |
Shimano SLX BR-M7100, hydraulic, Giant TR55 rotors Front: 180mm, Rear: 160mm |
| Brake Levers | Shimano SLX BL-M7100 |
| Handlebars | Giant Integrated XC, alloy, 780mm, 9-degree upsweep |
| Tape/Grips | SRAM TwistLoc Ultimate |
| Stem |
Giant Integrated XC, alloy XS: 60, S:60mm, M:70mm, L:70mm |
| Seatpost |
Giant Contact Switch SL dropper, remote XS: 110mm travel S: 110mm travel M: 140mm travel |
| Saddle | Liv Grit SL |
| Accessories & Extras | tubeless prepared, 2.4" max tire size, 34t max chainring size, MRP SL TR2 chain guide |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Dreamy Blue/Black / X-Small / 29-inch | 4711291211148 | 1072010103 |
| Dreamy Blue/Black / Small / 29-inch | 4711291211155 | 1072010104 |
| Dreamy Blue/Black / Medium / 29-inch | 4711291211162 | 1072010105 |
| Dreamy Blue/Black / Large / 29-inch | 4711291211179 | 1072010107 |
