Details

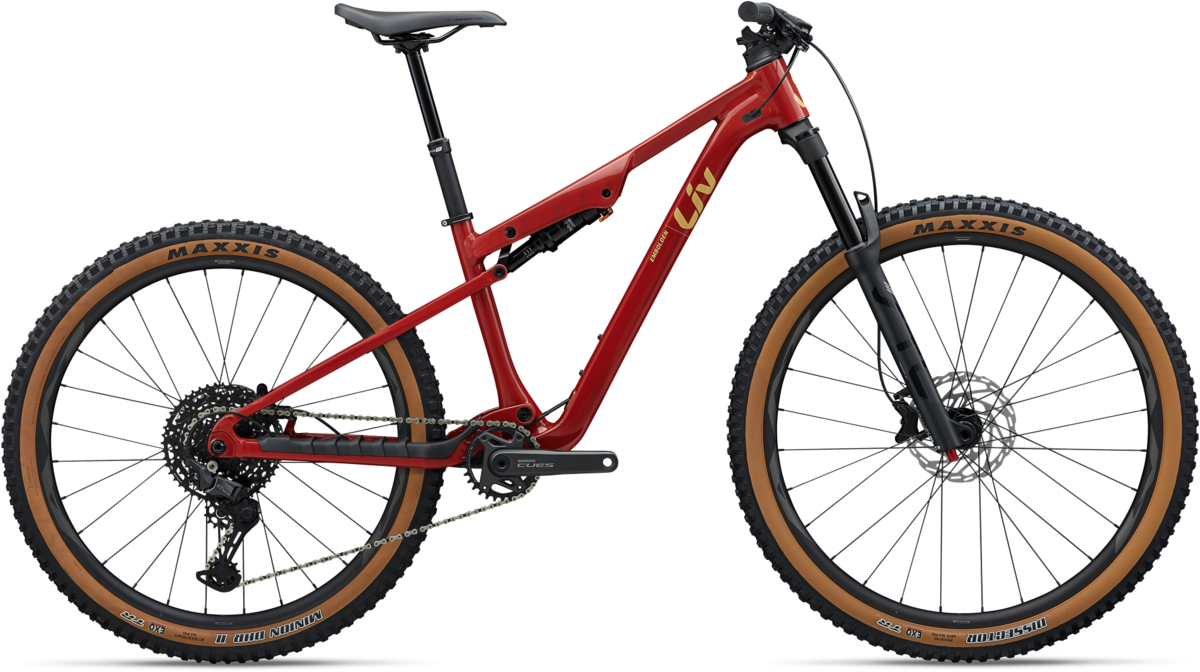

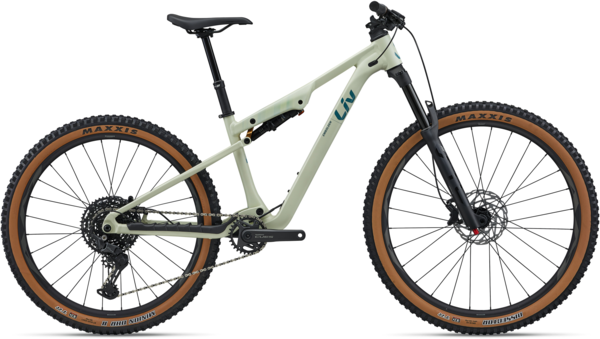

Nothing is off-limits to the Embolden, a trail bike designed to conquer tricky climbs, rowdy descents, and chunky rock gardens with confidence.

Sizes:
Frame Size	X-Small	Small	Medium	Large
Seat Tube Length (mm)	380	390	420	450
Seat Tube Angle	77.0°	77.0°	76.5°	76.5°
Top Tube Length (mm)	547	563	582	603
Head Tube Length (mm)	95	105	115	125
Head Tube Angle	65.0°	65.0°	65.0°	65.0°
Fork Rake (mm)	44	44	44	44
Trail (mm)	129	129	129	129
Wheelbase (mm)	1158	1176	1194	1217
Chainstay Length (mm)	440	440	442	442
BB Drop (mm)	25	25	40	40
Stack (mm)	613	622	628	637
Reach (mm)	405	419	431	450
Standover (mm)	758	758	750	750
Handlebar Width (mm)	760	760	760	780
Stem Length (mm)	40	40	50	50
Crank Length (mm)	165.0	165.0	165.0	165.0
Wheel Size	F29 / R27.5	F29 / R27.5	29"	29"

Specs

Frame	ALUXX-grade aluminum, 130mm FlexPoint suspension, 12x148mm thru-axle
Fork	Giant STL 34, dual air, 140mm, 44mm offset, 15x110mm, thru-axle
Rear Shock	Giant Crest FloTrac, 2-position lockout, 190/45
Rims	Giant AM30, 6061 alloy, sleevejoint, tubeless ready, 30mm IW XS/S: 29" front, 27.5" rear M/L: 29" front and rear
Hubs	Front: Giant MTB alloy, 6-bolt, sealed Rear: Giant MTB alloy, 3-pawl 37t driver, 6 bolt, sealed
Spokes	Sapim
Tires	Front: Maxxis Dissector 29x2.4" WT, 60 TPI, Dual, EXO, TR, tubeless XS/S rear: Maxxis Dissector 27.5x2.4"WT, 60 TPI, Dual, EXO, TR, tubeless M/L rear: Maxxis Dissector 29x2.4" WT, 60 TPI, Dual, EXO, TR, tubeless
Bottom Bracket	Shimano, threaded
Crankset	Shimano CUES, 30t, 55mm chainline
Shifters	Shimano CUES U6000, 1x10
Rear Derailleur	Shimano CUES RD-U6000
Cassette/Freewheel	Shimano CUES, LinkGlide, 10-speed, 11x48
Chain	KMC X11
Brakes	Tektro Gemini M535, 4-piston, hydraulic
Rotors	TR-17 rotors, 180mm front and rear
Brake Levers	Tektro Gemini
Handlebars	Giant Contact, 20mm rise, 35mm
Tape/Grips	Liv Tactal Pro single lock-on
Stem	Giant Contact SL 35
Seatpost	Giant Contact Switch AT adjustable dropper, remote XS/S: 110-140mm travel / 30.9 x 395mm M/L: 140-170mm travel / 30.9 x 470mm
Saddle	Liv ErgoContact Trail
Pedals	Sold separately
Accessories & Extras	tubeless prepared, 2.4" max tire size, 32t max chainring size

* Subject to change without notice.

Option	UPC	MPN	Store SKU
Red Clay / X-Small / 29-inch front / 27.5-inch rear	4711291217713	1033011203
Red Clay / Small / 29-inch front / 27.5-inch rear	4711291217720	1033011204
Red Clay / Medium / 29-inch	4711291217737	1033011205
Red Clay / Large / 29-inch	4711291217744	1033011207
Pale Moss / X-Small / 29-inch front / 27.5-inch rear	4711291217560	1033011103	210000047672
Pale Moss / Small / 29-inch front / 27.5-inch rear	4711291217577	1033011104	210000047673
Pale Moss / Medium / 29-inch	4711291217584	1033011105
Pale Moss / Large / 29-inch	4711291217591	1033011107
