Details

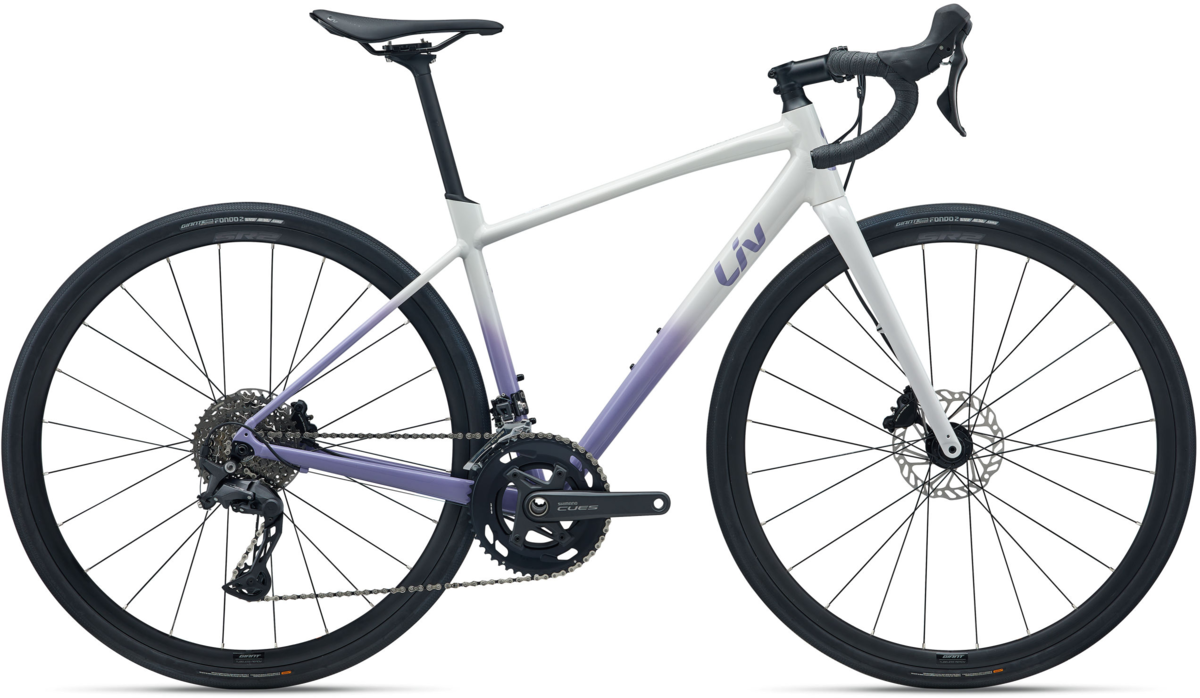

Whether it’s navigating asphalt or venturing through an unpaved shortcut, the Avail AR is smooth on flats, spry on climbs ,and confident on descents.

Comfort
- The lightweight ALUXX aluminum frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.

Control
- The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tires up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.

Carrying Capacity
- Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.

Geometry

Sizes:
Size	XX-Small	X-Small	Small	Medium	Large
A Seat Tube Length (mm)	395	430	465	500	535
B Seat Tube Angle	75.0°	75.0°	74.5°	74.0°	74.0°
C Top Tube Length (mm)	500	515	525	540	555
D Head Tube Length (mm)	120	135	150	170	190
E Head Tube Angle	70.0°	70.5°	72.0°	72.0°	72.0°
F Fork Rake (mm)	45	45	45	45	45
G Trail (mm)	76.2	73	63.5	63.5	63.5
H Wheelbase (mm)	986	998	990	1000	1016
I Chain Stay Length (mm)	420	420	420	420	420
J Bottom Bracket Drop (mm)	70	70	70	70	70
K Stack (mm)	514	530	550	569	588
L Reach (mm)	362	372	372	377	386
M Stand Over Height (mm)	662	687	716	744	772
N Handlebar Width (mm)	380	380	400	400	420
O Stem Length (mm)	70	70	80	90	90
P Crank Length (mm)	165	165	170	170	172.5

Sizing

Sizes:
Size	XX-Small	X-Small	Small	Medium	Large
Rider Height (cm)	145–156 cm	153–162 cm	158–169 cm	165–174 cm	171–182 cm

Specs

Frame	ALUXX-grade aluminum, 12x142mm thru-axle, disc
Fork	Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
Rims	Giant S-R2 Disc
Hubs	Giant alloy, 12mm thru-axle
Spokes	stainless
Tires	Giant Gavia Fondo 2, 700x32c, tubeless
Bottom Bracket	Shimano BB-RS501
Crankset	Shimano FC-U6030-2, 34/50 XXS: 165mm, XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm
Shifters	Shimano CUES U6030
Front Derailleur	Shimano CUES U6030F
Rear Derailleur	Shimano CUES U6020-10
Cassette/Freewheel	Shimano CS-LG400, 10-speed, 11x39
Chain	KMC X11
Brakes	Shimano BR-U6030 hydraulic, Giant MPH rotors, [F] 160mm, [R] 160mm
Brake Levers	Shimano CUES U6030
Handlebars	Liv Connect, 31.8mm, XXS: 380mm, XS: 380mm, S: 400mm, M: 400mm, L: 420mm
Tape/Grips	Liv All Condition
Stem	Giant Sport, XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm
Seatpost	Giant D-Fuse, composite, XXS: 350mm, XS: 350mm, S: 350mm, M: 350mm, L: 350mm
Pedals	Sold Seperately
Saddle	Liv Approach

* Subject to change without notice.

Part Numbers

Option	UPC	MPN	Store SKU
Lavender Blush / XX-Small / 700c	04711291217881	1017035122
Lavender Blush / X-Small / 700c	04711291217898	1017035123	210000047636
Lavender Blush / Small / 700c	04711291217904	1017035124	210000047637
Lavender Blush / Medium / 700c	04711291217911	1017035125	210000047638
Lavender Blush / Large / 700c	04711291217928	1017035127
