Details

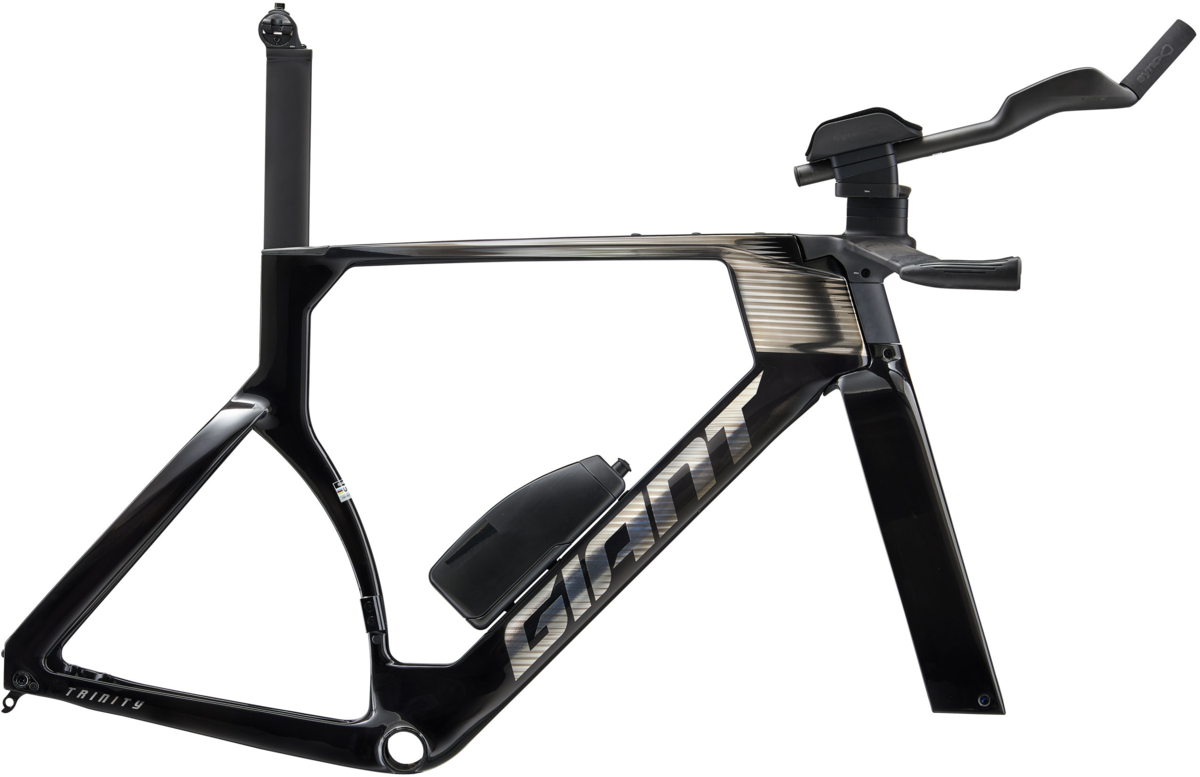

From windswept flats to climbs, corners and descents, the new Trinity Advanced SL delivers dynamic speed and control when every second counts. Easily adaptable to triathlon or TT, and featuring aero-integrated hydration and fueling systems, it’s lighter, more aerodynamic and smoother riding than the previous generation, with greater adjustability to dial in position and fit.
FULL-SPEED DYNAMICS
All-new composite frameset designed for flat-out speed and pinpoint control when racing against the clock. 558g less weight for faster climbing, integrated disc brakes for confident cornering and descending, added compliance for smoother ride performance, plus an integrated bento box and hydration straw to help riders produce full power without disturbing their riding position.
ULTIMATE AERO EFFICIENCY
AeroSystem Shaping Technology with truncated ellipse tubing for a 5.9-watt aero advantage and greater stiffness-to-weight ratio over previous generation Trinity. In addition, the hydration reservoir, bottles and bento box form an aero-optimized, integrated fueling system.
PERSONALIZED FIT

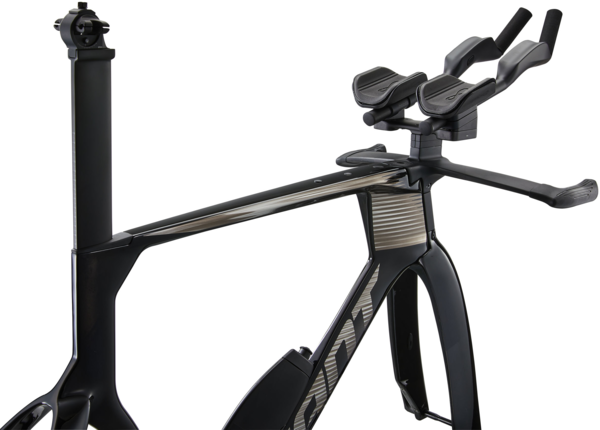

With a far greater range of adjustability compared to previous Trinity models—including four seatpost offset positions (51mm range) and 24x more armrest positioning options (stack, reach, angle and width)—it’s easier than ever to dial in fit for all body types and any riding position using simple two-bolt mechanisms.
Frame Size | XS | S | M | L |
---|---|---|---|---|
Seat Tube Length (mm/in) | 465 / 18.3 | 495 / 19.5 | 525 / 20.7 | 550 / 21.7 |
Seat Tube Angle (°) | 77.0° | 77.0° | 77.0° | 77.0° |
Top Tube Length (mm/in) | 510 / 20.1 | 530 / 20.9 | 554 / 21.8 | 579 / 22.8 |
Head Tube Length (mm/in) | 85 / 3.3 | 105 / 4.1 | 125 / 4.9 | 145 / 5.7 |
Head Tube Angle (°) | 72.0° | 73.0° | 73.0° | 73.0° |
Fork Rake (mm/in) | 40 / 1.6 | 40 / 1.6 | 40 / 1.6 | 40 / 1.6 |
Trail (mm/in) | 69.4 / 2.7 | 63 / 2.5 | 63 / 2.5 | 63 / 2.5 |
Wheelbase (mm/in) | 974 / 38.4 | 988 / 38.9 | 1013 / 39.9 | 1039 / 40.9 |
Chain Stay Length (mm/in) | 405 / 15.9 | 405 / 15.9 | 405 / 15.9 | 405 / 15.9 |
Bottom Bracket Drop (mm/in) | 70 / 2.8 | 70 / 2.8 | 70 / 2.8 | 70 / 2.8 |
Stack (mm/in) | 490 / 19.3 | 513 / 20.2 | 532 / 20.9 | 551 / 21.7 |
Reach (mm/in) | 397 / 15.6 | 412 / 16.2 | 432 / 17.0 | 452 / 17.8 |
Stand Over Height (mm/in) | 758 / 29.8 | 786 / 30.9 | 814 / 32.0 | 838 / 33.0 |
Handlebar Width (mm/in) | 400 / 15.7 | 400 / 15.7 | 400 / 15.7 | 400 / 15.7 |
Crank Length (mm/in) | 160 / 6.3 | 165 / 6.5 | 170 / 6.7 | 172.5 / 6.8 |
Wheel Size | 700C | 700C | 700C | 700C |
Arm Pad Stack (mm/in) | (TRI) 629-709 / 24.8-27.9 | (TT) 582-662 / 22.9-26.1 | (TRI) 653-733 / 25.7-28.9 | (TT) 605-685 / 23.8-27.0 | (TRI) 672-752 / 26.5-29.6 | (TT) 624-704 / 24.6-27.7 | (TRI) 691-771 / 27.2-30.4 | (TT) 643-723 / 25.3-28.5 |
Arm Pad Reach (mm/in) | (TRI) 323-398 / 12.7-15.7 | (TT) 339-414 / 13.3-16.3 | (TRI) 340-415 / 13.4-16.3 | (TT) 355-430 / 14.0-16.9 | (TRI) 360-435 / 14.2-17.1 | (TT) 375-450 / 14.8-17.7 | (TRI) 380-455 / 15.0-17.9 | (TT) 395-470 / 15.6-18.5 |
Frame Size | Rider Height (cm) | Rider Height (in) |
---|---|---|
XS | 159 - 169 | 5'3" - 5'7" |
S | 166 - 176 | 5'5" - 5'9" |
M | 173 - 182 | 5'8" - 6'0" |
L | 181 - 191 | 5'11" - 6'3" |
Specs
Frame | Advanced SL-Grade Composite, 12x142mm thru-axle, disc |
---|---|
Fork | Advanced SL-Grade Composite, full-composite steerer, 12x100mm thru-axle, disc |
Handlebars | AeroDrive base bar with Sync armrest set, 10 and 15-degree extension wedge |
Stem | AeroDrive integrated stem |
Seatpost | Trinity Composite |
Accessories & Extras | Computer mount, down tube bottle and cage, 30mm max tire size |
* Subject to change without notice.
