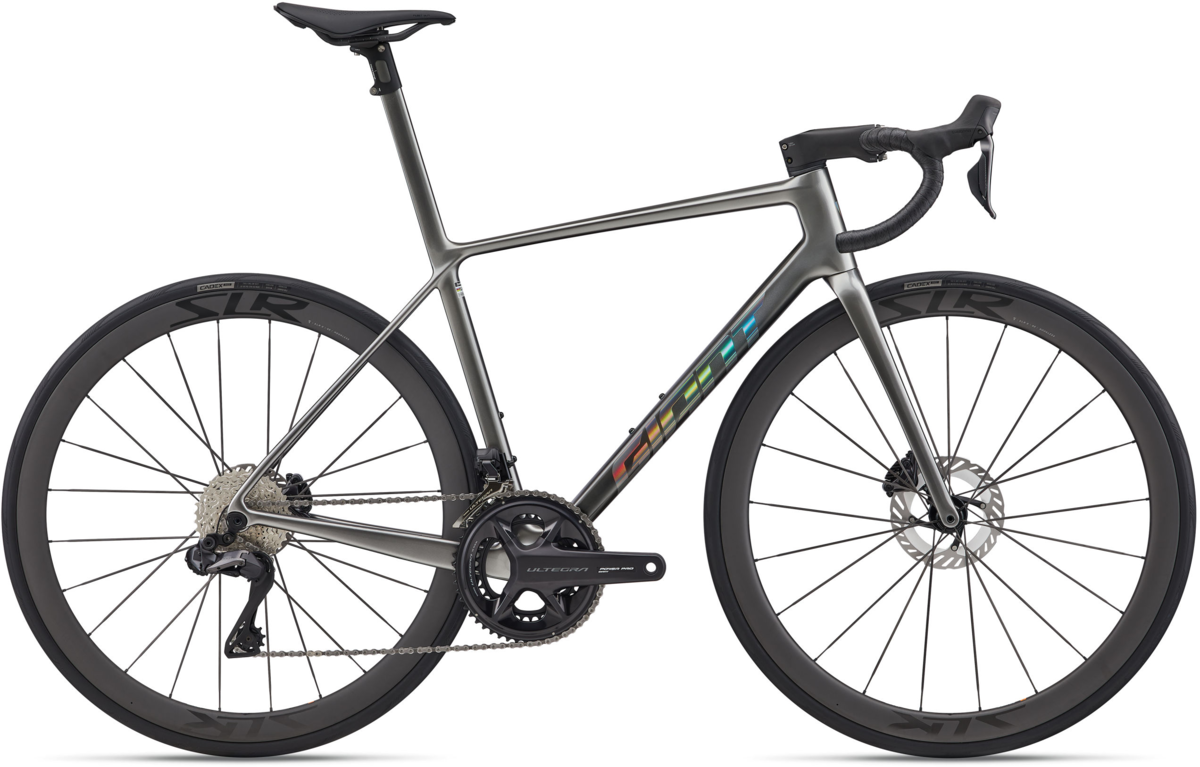

Giant TCR Advanced SL 1

Giant TCR Advanced SL 1
$9,999.00
Color: Dark Chrome/Iris
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Il n'est pas possible de livrer ce produit, mais vous pouvez l'acheter en ligne et venir le chercher en magasin.

Details

From hors categorie climbs to rollers and flats, this WorldTour level race bike is the pro’s choice for all-rounder performance. The all-new flagship TCR uses system integration and innovative construction methods to deliver a clear advantage on the road.

SYSTEM OPTIMIZATION
- The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SLR handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup

WINNING EFFICIENCY
- Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS
- From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.

bike diagram with measurements referenced in table that follows

Sizes:
SizeX-SmallSmallMediumMedium/LargeLargeX-Large
A Seat Tube Length (mm) 680 710 740 770 800 830
B Seat Tube Angle 74.5° 74.0° 73.5° 73.0° 73.0° 72.5°
C Top Tube Length (mm) 520 535 550 565 580 600
D Head Tube Length (mm) 120 130 145 165 185 200
E Head Tube Angle 71.0° 72.3° 73.0° 73.0° 73.0° 73.0°
F Fork Rake (mm) 45 45 45 45 45 45
G Trail (mm) 72.1 64 59.2 59.2 59.2 59.2
H Wheelbase (mm) 976 977 980 991 1006 1020
I Chain Stay Length (mm) 405 405 405 405 405 405
J Bottom Bracket Drop (mm) 72 70 70 67 67 67
K Stack (mm) 517 528 545 562 581 596
L Reach (mm) 376 383 388 393 402 412
M Stand Over Height (mm) 719 734 752 768 786 803
N Handlebar Width (mm) 420 420 440 440 440 440
O Stem Length (mm) 80 90 100 110 110 120
P Crank Length (mm) 165 165 170 170 172.5 172.5
Sizes:
SizeX-SmallSmallMediumMedium/LargeLargeX-Large
Rider Height (cm) 157–169 cm 165–175 cm 171–181 cm 177–187 cm 183–193 cm 189–199 cm

Specs

Frame Advanced SL-grade Composite, 12x142mm thru-axle, integrated seatpost, disc
Fork Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Rims Giant SLR 0 40 WheelSystem, [F]40mm, [R]40mm
Hubs [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
Spokes Giant Aero Carbon Spoke
Tires CADEX Road Race GC, tubeless, 700x30mm, folding
Bottom Bracket Shimano, press fit
Crankset Shimano Ultegra, 36/52 with Giant Power Pro power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Shifters Shimano Ultegra Di2
Front Derailleur Shimano Ultegra Di2 FD-R8150
Rear Derailleur Shimano Ultegra Di2 RD-R8150
Cassette/Freewheel Shimano Ultegra, 12-speed, 11x34
Chain Shimano CN-M8100
Brakes Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]140mm
Brake Levers Shimano Ultegra Di2
Handlebars Giant Contact SLR XS:420/370mm, S:420/370mm, M:440/390mm, M/L:440/390mm, L:440/390mm, XL:440/390mm
Tape/Grips Stratus Lite 2.0
Stem Giant Contact SLR AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost Giant Integrated Seatpost, -5/+15mm offset
Pedals Sold Seperately
Saddle Giant Fleet SLR

* Subject to change without notice.

Part Numbers

Option UPC MPN
Dark Chrome/Iris / X-Small / 700c 04711291221697 1096051103
Dark Chrome/Iris / Small / 700c 04711291221703 1096051104
Dark Chrome/Iris / Medium / 700c 04711291221710 1096051105
Dark Chrome/Iris / Medium/Large / 700c 04711291221727 1096051106
Dark Chrome/Iris / Large / 700c 04711291221734 1096051107
