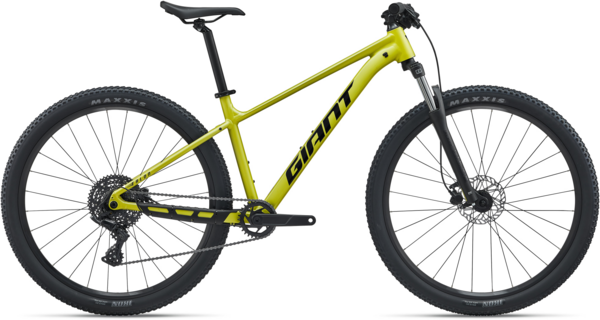

Giant Talon 4

Giant Talon 4
  • Color: Cyber Lime
  • Color: Azure Blue
  • Color: Black
$749.00
Color:
Size: Select size
Wheel Size: Select wheel size
Please select options Unavailable
Il n'est pas possible de livrer ce produit, mais vous pouvez l'acheter en ligne et venir le chercher en magasin.

Details

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models.

Modern MTB Design

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models

Off-Road Control

New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.

Light and Durable

All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

Wheel Sizes:

X-Small-Small - 27.5-inch
Small - X-Large - 29-inch

Sizes:
Frame SizeX-Small (27.5-inch)Small (27.5-inch)Small (29-inch)Medium (29-inch)Large (29-inch)X-Large (29-inch)
Seat Tube Length (mm) 345 375 380 420 450 480
Seat Post Insertion Depth (mm) 300 340 245 200 250 300
Seat Tube Angle (degree) 74.0° 74.0° 74.5° 74.5° 74.5° 74.5°
Top Tube Horizontal (mm) 542 562 581 604 629 653
Head Tube Length (mm) 90 90 95 105 125 140
Head Tube Angle (degree) 67.0° 67.0° 67.5° 67.5° 67.5° 67.5°
Fork Rake (mm) 44 44 44 44 44 44
Trail (mm) 105 105 109 109 109 109
Wheelbase (mm) 1084 1104 1140 1164 1191 1216
Rear Centre (mm) 440 440 455 455 455 455
Bottom Bracket Drop (mm) 45 45 55 55 55 55
Stack (mm) 548 548 597 606 625 638
Reach (mm) 385 405 415 435 455 475
Standover Height (mm) 684 684 715 708 708 710
Handlebar Width (mm) 760 760 760 760 760 760
Stem Length (mm) 40 50 40 50 60 60
Crank Length (mm) 165 165 170 170 170 175
Sizes:
Frame SizeX-Small (27.5-inch)Small (27.5-inch)Small (29-inch)Medium (29-inch)Large (29-inch)X-Large (29-inch)
Rider Height (cm) 155–166 163–172 163–172 169–179 176–186 183–193
Rider Height (in) 5'1"–5'5" 5'4"–5'8" 5'4"–5'8" 5'7"–5'10" 5'9"–6'1" 6'0"–6'4"

Specs

Bottom Bracket Giant GX03V 27.5 or 29, alloy, double wall, 21mm IW
Frame SR Suntour XCE, QR, steel steerer
XS, S: 80mm travel (27.5)
S, M, L, XL, XXL:100mm travel (29)
Frame Material ALUXX-grade aluminum, disc
Rear Shock Giant Connect Trail, 31.8mm
Rims alloy, sealed bearing, [F] 9mm QR, [R] 12x142 thru-axle
Hubs stainless, 14G
Spokes Maxxis Ikon 27.5x2.2" or Maxxis Ikon 29x2.2", 60 TPI, wire bead
Tires 2.4" max tire size, max chainring 32t
Crankset cartridge
Front Derailleur microSHIFT Acolyte, RD-M5185M, with clutch
Rear Derailleur Tektro TKD-176, hydraulic
Tektro rotors [F]160mm, [R]160mm
Cassette/Freewheel KMC 8.1
Chain ProWheel forged, [27.5] 32t, [29] 30t, 52.5mm chainline
Brakes Tektro TKD 176
Brake Levers microSHIFT Acolyte, 8-speed, 12x46
Handlebars Giant Sole-O
Tape/Grips Giant Sport, 7-degree
Stem Giant Sport, 30.9
Seatpost Giant ErgoContact Trail
Saddle platform
Pedals microSHIFT Acolyte, 1x8

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Cyber Lime / Small / 27.5-inch 4711291286238 1095022394 210000050185
Black / X-Small / 27.5-inch 4711291285989 1095022193
Black / XX-Large / 29-inch 4711291286146 1095020199
Azure Blue / Small / 29-inch 4711291286047 1095020294 210000049955
Cyber Lime / Small / 29-inch 4711291286252 1095020394 210000049957
Black / Small / 27.5-inch 4711291285996 1095022194
Cyber Lime / Medium / 29-inch 4711291286269 1095020395 210000049958
Cyber Lime / X-Large / 29-inch 4711291286283 1095020398
Azure Blue / XX-Large / 29-inch 4711291286085 1095020299 210000050183
Azure Blue / X-Small / 27.5-inch 4711291286016 1095022293 210000050148
Cyber Lime / X-Small / 27.5-inch 4711291286221 1095022393 210000050184
Azure Blue / Medium / 29-inch 4711291286054 1095020295 210000049956
Azure Blue / Small / 27.5-inch 4711291286023 1095022294 210000050149
Cyber Lime / XX-Large / 29-inch 4711291286290 1095020399
Cyber Lime / Large / 29-inch 4711291286276 1095020397 210000049959
Black / Large / 29-inch 4711291286122 1095020197
Black / X-Large / 29-inch 4711291286139 1095020198
Black / Medium / 29-inch 4711291286115 1095020195
Azure Blue / X-Large / 29-inch 4711291286078 1095020298
Azure Blue / Large / 29-inch 4711291286061 1095020297 210000049860
Black / Small / 29-inch 4711291286108 1095020194
