Details

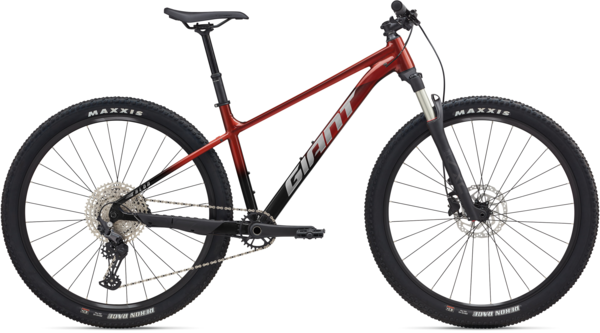

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models

Key Performance Factors

Proven alloy performance
ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.

Balance and stability
Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).

XC control
Suspension fork offers either 80mm or 100mm of smooth travel for added XC control.

Wheel Sizing:

Size X-Small - Small: 27.5-inch wheels
Size Medium - X-Large: 29-inch wheels

Specs

Frame	ALUXX-grade aluminum, disc
Fork	Giant SXC32-2 RCL, air spring, 1.5" tapered steel steerer, 15x110mm thru-axle XS,S: 80mm (27.5) S,M,L,XL: 100mm (29)
Rims	Giant GX03V 27.5 or 29, alloy, double wall, 21mm IW
Hubs	Shimano, alloy, sealed bearing, Centerlock [F] 15x110 thru axle, [R] 12x142 thru-axle
Spokes	Stainless
Tires	Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", 60 TPI, wire bead
Bottom Bracket	Cartridge
Crankset	ProWheel MPX, [27.5] 32t, [29] 30t, 52.5mm chainline
Shifters	Shimano Deore M6100, 1x12
Rear Derailleur	Shimano Deore M6100, with clutch
Cassette/Freewheel	Shimano Deore M6100, 12-speed, 10x51
Chain	KMC X12
Brakes	Shimano BR-MT200, hydraulic
Rotors	Shimano RT-10 rotors 180mm/160mm
Brake Levers	Shimano BL-MT200
Handlebars	Giant Connect Trail, 31.8mm
Tape/Grips	Giant Sole-O
Stem	Giant Sport, 7-degree
Seatpost	Giant Contact Switch Core dropper, remote XS, S: 100 travel / 30.9 x 350mm, M-XL: 120 travel / 30.9 x 400mm
Saddle	Giant ErgoContact Trail
Pedals	Platform

* Subject to change without notice.

Part Numbers

Option	UPC	MPN	Store SKU
Mars Dust/Black / X-Small / 27.5-inch	04711291157309	1094007293	210000047348
Mars Dust/Black / Small / 27.5-inch	04711291157286	1094007294
Mars Dust/Black / Small / 29-inch	4711291186248	1095007294	210000047349
Mars Dust/Black / Medium / 29-inch	04711291186255	1095007295	210000047323
Mars Dust/Black / Large / 29-inch	04711291186262	1095007297	210000047528
Mars Dust/Black / X-Large / 29-inch	04711291186279	1095007298
