Details

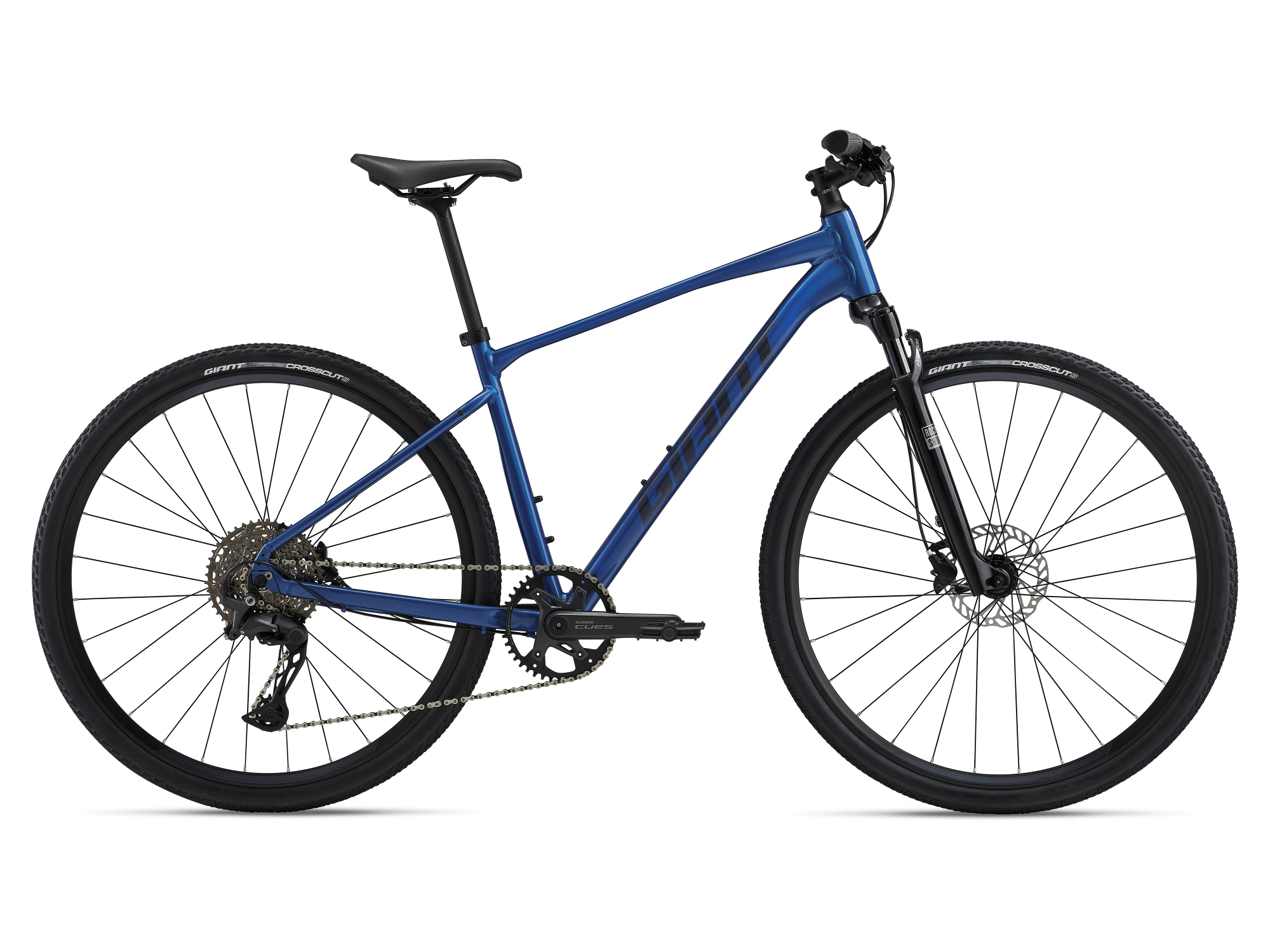

With its flat handlebar, comfortable upright positioning and smooth, powerful disc brakes, Roam combines the best qualities of a road bike and a mountain bike. Now you can follow your own route wherever it goes.
Key Performance Factors:
Agility and control
Updated flat-bar frame geometry puts the rider in a position that balances efficiency with stability, and disc brakes give you added control on rugged roads or dirt.
Smooth-riding comfort
The D-Fuse seatpost and suspension fork absorb road shocks and vibrations, and EasyRide Tubeless tires let you run lower pressure for a smoother ride quality and a reduced risk of flats.
Integrated rack mounts
Compatible with rear racks, allowing easy cargo capacity for daily trips or longer treks.
Frame Size | Small | Medium | Large | X-Large |
---|---|---|---|---|
Seat Tube Length (mm) | 420 | 460 | 500 | 550 |
Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° |
Top Tube Length (mm) | 590 | 600 | 610 | 625 |
Head Tube Length (mm) | 115 | 130 | 145 | 160 |
Head Tube Angle | 70.5° | 70.5° | 70.5° | 70.5° |
Fork Rake (mm) | 42 | 42 | 42 | 42 |
Trail (mm) | 85 | 85 | 85 | 85 |
Wheelbase (mm) | 1088 | 1098 | 1109 | 1125 |
Chain Stay Length (mm) | 450 | 450 | 450 | 450 |
Bottom Bracket Drop (mm) | 62 | 62 | 62 | 62 |
Stack (mm) | 606 | 620 | 634 | 648 |
Reach (mm) | 404 | 410 | 416 | 427 |
Stand Over Height (mm) | 725 | 756 | 788 | 827 |
Handlebar Width (mm) | 640 | 680 | 680 | 680 |
Stem Length (mm) | 70 | 80 | 90 | 100 |
Crank Length (mm) | 170 | 170 | 175 | 175 |
Wheel Size | 700C | 700C | 700C | 700C |
Frame Size | Rider Height (cm) | Rider Height (in) |
---|---|---|
X-Small | 150 - 160 | 4'11" - 5'3" |
Small | 160 - 170 | 5'3" - 5'7" |
Medium | 170 - 180 | 5'7" - 5'11" |
Large | 180 - 190 | 5'11" - 6'3" |
X-Large | 190 - 200 | 6'3" - 6'7" |
Specs
Pedals | Platform |
---|---|
Fork | RockShock Paragon Gold RL, Solo Air, 50mm, lockout |
Hubs | alloy, 28h |
Rims | Giant double wall alloy |
Stem | Giant Sport, 8-degree |
Chain | KMC X11 |
Frame | ALUXX-grade aluminum, disc |
Tires | Giant CrossCut, anti-puncture, 700x42c |
Brakes |
Shimano BL-MT200 hydraulic [F]160mm, [R]160mm rotors |
Saddle | Giant ErgoContact |
Spokes | stainless |
Crankset | Shimano CUES U6000-1, 42t |
Seatpost | Giant D-Fuse, composite |
Shifters | Shimano CUES U6000, 1x11 |
Handlebars | Giant Connect XC, 31.8mm |
Tape/Grips | Giant ErgoContact |
Brake Levers | Shimano BL-MT201 |
Bottom Bracket | threaded |
Rear Derailleur | Shimano CUES RD-U6020 |
Accessories & Extras | 53mm max tire size (w/o fender) |
Cassette/Freewheel | Shimano EP6 LinkGlide, 11-speed, 11x45 |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Electron Blue / Medium / 700c | 4711291136359 | 1082008195 | |
Electron Blue / Small / 700c | 4711291136342 | 1082008194 | 210000045525 |
Electron Blue / X-Large / 700c | 4711291136373 | 1082008198 | |
Electron Blue / Large / 700c | 4711291136366 | 1082008197 | 210000045526 |
