Details
Exhilarating yet relaxing. With smooth, powerful pedaling assistance and comfortable handling, the new Expression E+ is a motivating companion for commuting, fitness riding, or just pedaling for the fun of it.
Key Performance Factors:
Smart support
- The new SyncDrive Core 50Nm motor has Smart Assist mode, which uses sensors to constantly determine and deliver the optimal level of support by automatically adjusting power output.
Comfort and control
- A step-thru frame design with a 63mm suspension fork, suspension seatpost, powerful disc brakes, and extra-wide 55mm tires combine for smooth confidence and control on a variety of road surfaces and conditions.
Full-Color Display
- RideDash Evo (on select models) on the handlebar/stem area makes it easy to view ride data, including speed, distance, battery level, and navigation.
Range:
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo, wind resistance, tire pressure and tread profile, terrain and elevation changes, road or trail surface, outdoor temperature, maintenance of the E-Bike, and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good, and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds, or excessive climbs.
Energypak 500 / SyncDrive Core
Range:
- Extreme: 34 miles
- Good: 62 miles
- Ideal: 105 miles
Highlights -

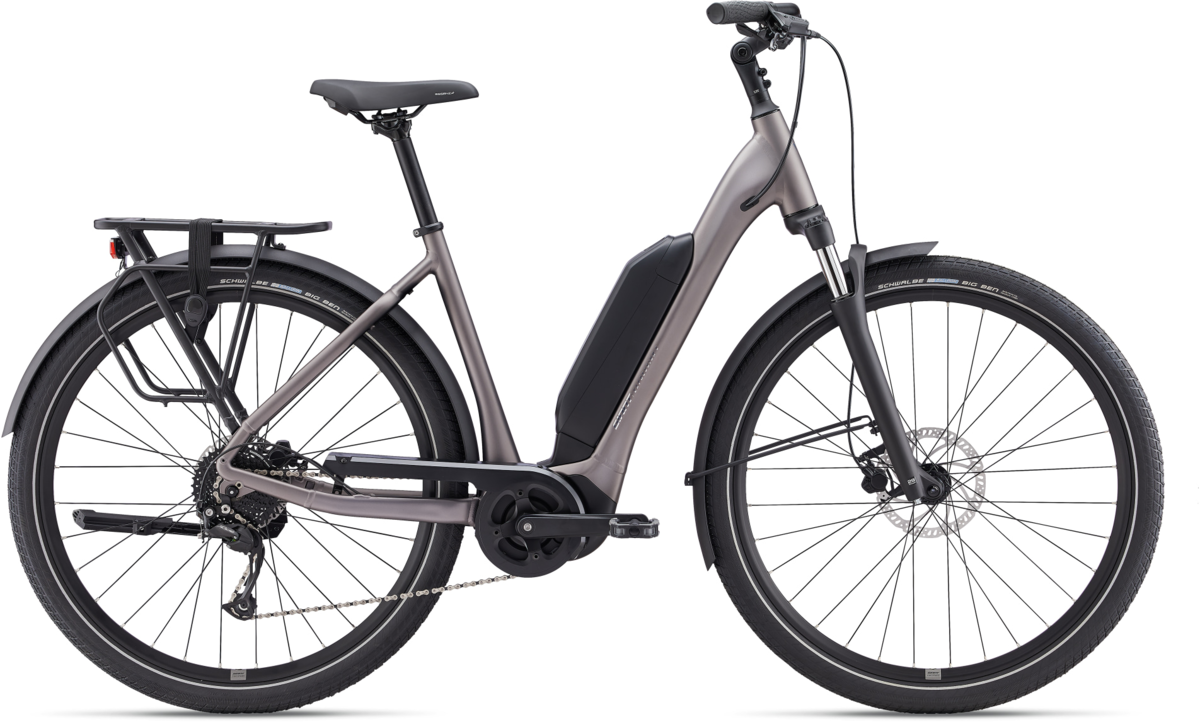

This low-step through E-bike features the new SyncDrive Core, a compact and lightweight motor that’s ideal for commuters and recreational riders. It delivers 50Nm of torque and utilizes Smart Assist technology, which features six sensors, including slope detection and an accelerometer, to produce the precise amount of power needed at all times. The result is a quiet, natural ride experience. A suspension fork helps smooth out rough roads, and the RideControl Dash full-color display (on select models) makes it easy to keep track of battery level and support mode, along with cycling data like speed and distance.

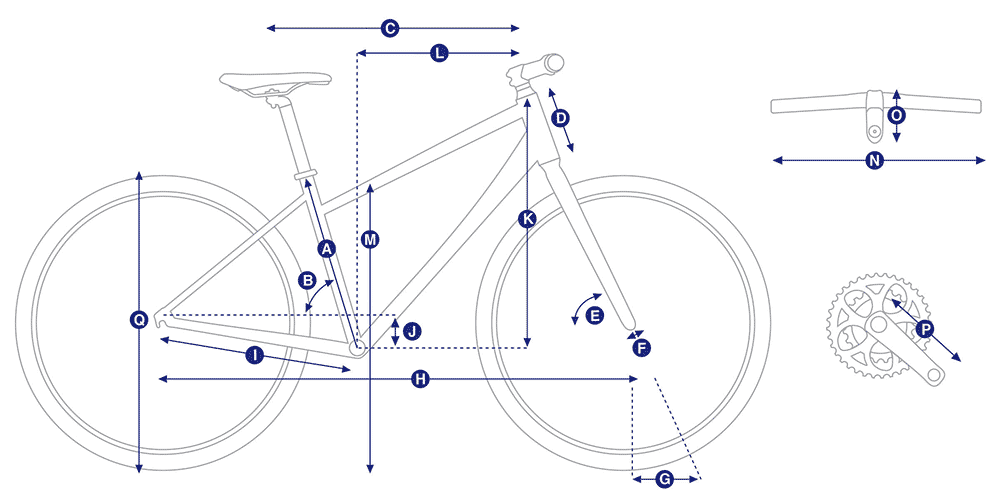

S | M | L | ||
---|---|---|---|---|
A | Seat Tube Length (inch) | 17.7 | 19.7 | 21.7 |
B | Seat Tube Angle | 73.0° | 72.0° | 71.0° |
C | Top Tube Length (inch) | 22.8 | 23.4 | 24.4 |
D | Head Tube Length (inch) | 5.5 | 6.3 | 7.1 |
E | Head Tube Angle | 70.0° | 70.0° | 70.0° |
F | Fork Rake (inch) | 1.7 | 1.7 | 1.7 |
G | Trail (inch) | 3.5 | 3.5 | 3.5 |
H | Wheelbase (inch) | 43.6 | 43.7 | 44.3 |
I | Chain Stay Length (inch) | 18.5 | 18.5 | 18.5 |
J | Bottom Bracket Drop (inch) | 2.4 | 2.4 | 2.4 |
K | Stack (inch) | 24.5 | 25.2 | 25.9 |
L | Reach (inch) | 15.4 | 15.2 | 15.5 |
M | Stand Over Height (inch) | 20.3 | 20.3 | 20.3 |
N | Handlebar Width (inch) | 27.2 | 27.2 | 27.2 |
O | Stem Length (inch) | 3.5 | 3.5 | 4.3 |
P | Crank Length (inch) | 6.7 | 6.7 | 6.7 |
Q | Wheel Size | 700C | 700C | 700C |
S | 5’2" 5’11" |
---|---|
M | 5’5" 6’2" |
L | 5’8" 6’4" |
Specs
Frame | ALUXX-grade aluminum, 1.125" head tube, semi-integrated battery, KSA18 kickstand mount |
---|---|
Fork | SR Suntour Mobie A32 DC coil spring, 63mm, 15x100mm thru-axle |
Rims | Giant GX03V, alloy, 700c |
Hubs | Shimano [F] HB-TC500 100x15mm thru-axle, [R] Shimano FH-QC300-HM 135mm QR |
Spokes | stainless |
Tires | Schwalbe Big Ben, 622x55, RaceGuard, ADDIX, wire bead w/ Reflective |
Crankset | forged alloy, 38t |
Shifters | Shimano Altus, 1x9 |
Rear Derailleur | Shimano Alivio RD-M3100 |
Cassette/Freewheel | Shimano Alivio, 9-speed, 11x36 |
Chain | KMC e.9 Sport, e-bike optimized |
Brakes |
Tektro HD-M275, hydraulic Tektro TR-52 rotors, [F] 180mm, [R] 160mm |
Brake Levers | Tektro HD-M275 |
Handlebars | Alloy, mid-rise, 31.8mm |
Tape/Grips | Giant Comfort Ergo Microtech Plus lock-on |
Stem | Alloy angle adjustable |
Seatpost | Giant forged alloy, 30.9mm, 2-bolt micro adjustable |
Saddle | Selle Royal Vivo Essenza Plus |
Pedals | platform |
Accessories & Extras | fenders, KSA18 direct mount kickstand, MIK HD rack system - bag & basket compatible |
Motor | SyncDrive Core2, 55Nm, powered by Yamaha |
Battery | EnergyPak 500Wh, CO2 neutral production |
Controller/Display | RideControl One ANT+, 5 power levels plus Smart Assist auto mode |
Charger | EnergyPak 4A smart charger compact, 60% in 2:30h |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Early Espresso / Small / 700c | 4711291233218 | 7690005254 | 210000046741 |
Early Espresso / Medium / 700c | 4711291233225 | 7690005255 | 210000046743 |
Early Espresso / Large / 700c | 4711291233232 | 7690005257 | 210000046745 |
Black Currant / Small / 700c | 4711291233171 | 7690005154 | |
Black Currant / Medium / 700c | 4711291233188 | 7690005155 | |
Black Currant / Large / 700c | 4711291233195 | 7690005157 |
