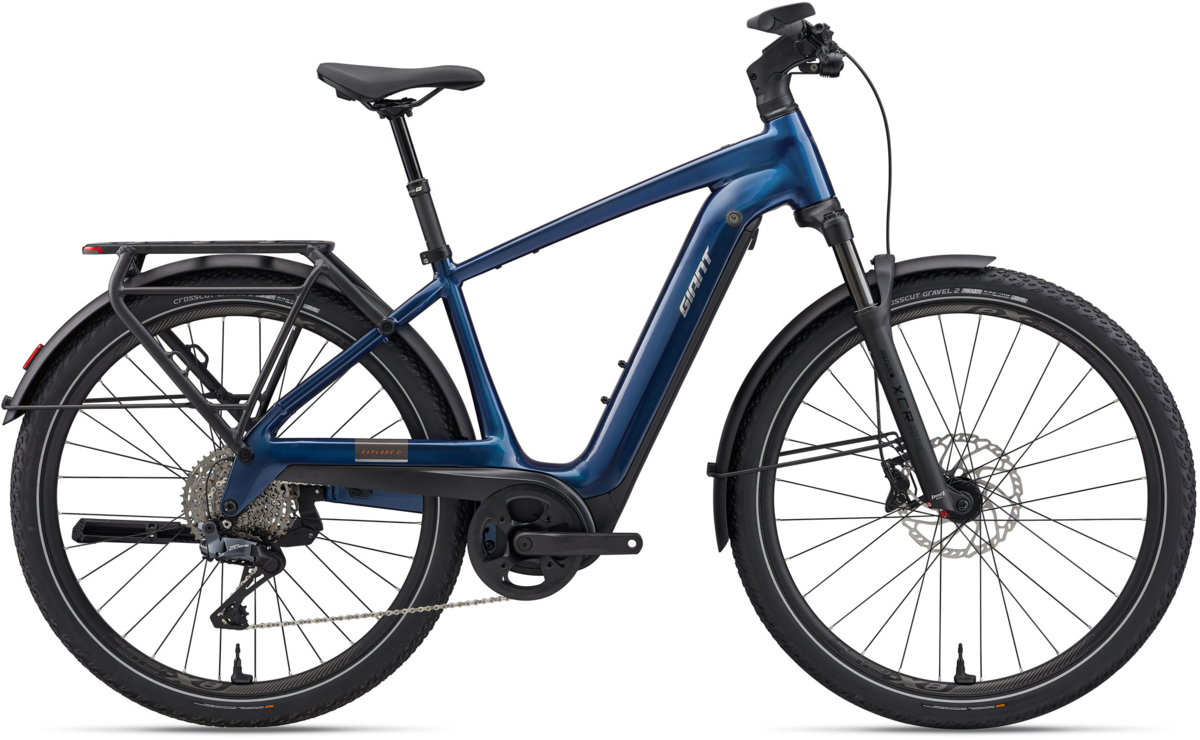

Giant Explore E+ 1 Double Diamond

Giant Explore E+ 1 Double Diamond
  • Color: Metallic Navy
$6,299.00
Color: Metallic Navy
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Il n'est pas possible de livrer ce produit, mais vous pouvez l'acheter en ligne et venir le chercher en magasin.

Details

Built for adventure, the Explore E+ turns commutes and escapes into open horizons. With versatile design and seamless integration, it delivers smooth support, confidence, and freedom to ride farther—wherever the journey leads.

Key Performance Factors:

CONFIDENCE & COMFORT
Built for adventure, the Explore E+ is a highly capable and adaptable machine to discover new routes and new experiences on roads, gravel or dirt. With versatile design and seamless integration, it delivers smooth support, confidence, and freedom to ride farther—wherever the journey leads.

POWER THAT LASTS
Endurance comes from the EnergyPak 800 battery, running cooler and more efficiently with up to 2300 charge cycles. Paired with the SyncDrive Pro 2 motor delivering 85Nm of torque, it makes climbs manageable and distance effortless. Smart Assist adapts support automatically, while E-Shift with belt drive* provides quiet, low-maintenance shifting for dependable power on every ride.

PROTECTION YOU TRUST
Safety and security are built into the Explore E+. Aegis safety technology includes E-Lock with alarm, Apple Find My for tracking, the Aegis Tire Checker for real-time pressures, and the Aegis Radar* to detect approaching vehicles. Integrated lighting syncs with Radar to increase visibility. Combined with racks, mounts, and a one-piece carrier, it’s a complete solution for connected, protected riding. *Belt drive and Aegis Radar are available on select models only

Highlights:
The Explore E+ is built to expand what’s possible on every ride. Its modern frame introduces an elevated chainstay for quiet, low-maintenance drivetrains, while the one-piece rear carrier integrates lighting and radar-ready safety. At its core is the newly evolved E+ System: a 36-volt SyncDrive Pro 2 motor delivering 85Nm of torque and up to 400% support, paired with the long-lasting EnergyPak 800 battery and intelligent Smart Assist. A refined cockpit combines the RideDash Evo 2 display, RideControl Ergo 4 dual-sided remote, and RideControl Go 2 button for intuitive interaction, while E-Shift with belt drive* keeps every pedal stroke smooth. From daily commutes to cross-country escapes, the Explore E+ turns every route into an open horizon.

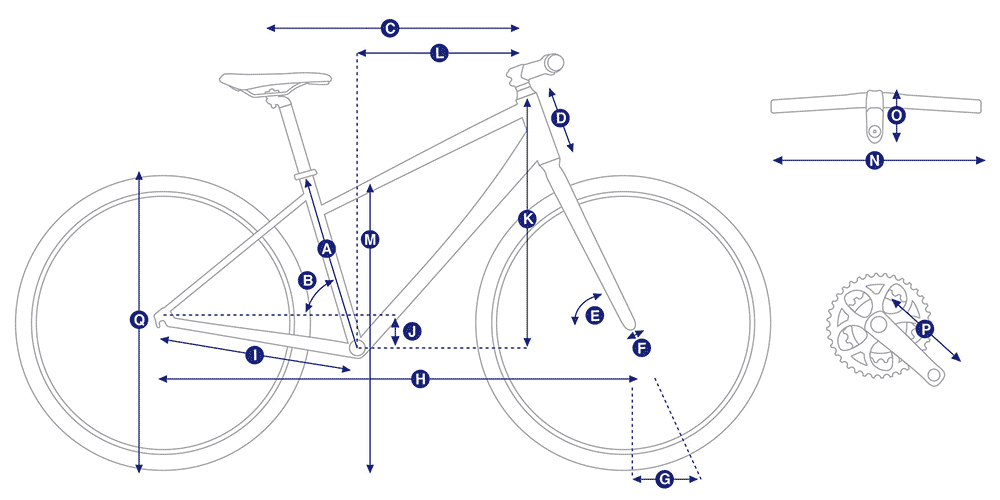

Geometry
Sizes:
MLXL
A Seat Tube Length (mm) 435 485 535
B Seat Tube Angle 73.0° 73.0° 73.0°
C Top Tube Length (mm) 600 610 630
D Head Tube Length (mm) 140 155 170
E Head Tube Angle 69.5° 69.5° 69.5°
F Fork Rake (mm) 51 51 51
H Wheelbase (mm) 1144 1155 1176
I Chain Stay Length (mm) 470 470 470
J Bottom Bracket Drop (mm) 60 60 60
K Stack (mm) 668 682 696
L Reach (mm) 396 401 417
N Handlebar Width (mm) 690 690 690
O Stem Length (mm) 80 100 100
Q Wheel Size 29" 29" 29"
Sizes:
M5’7" to 5’10"
L 5’9" to 6’1"
XL 6’0" to 6’4"

Specs

Frame Gen 4 ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount
Fork SR Suntour XCR34 2CR air boost 100mm travel 15x110mm AH axle
Rims Giant eX25, Tubeless Ready, 622x25 Aluminium
Hubs Giant eTracker Boost 6-bolt disc 15x110mm [F] 12x148mm [R]
Spokes Stainless steel, e-bike optimized
Tires Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready, w/ Reflection Strip
Crankset Forged alloy spider w/chainguard BCD 104, steel narrow/wide chainring 42T
Shifters Shimano Cues Di2 E-Shift
Rear Derailleur Shimano Cues Di2, 11-Speed
Cassette/Freewheel Shimano, 11-45T, 11-speed
Chain Shimano Linkglide CN-LG500
Brakes Shimano Deore, BR-MT420, hydraulic disc, 4-piston, 203mm [F] 180mm [R]
Brake Levers Shimano BL-M401
Handlebars Giant Contour Comfort Riser 31.8x720mm
Tape/Grips RideControl Ergo3 Integrated Trekking (w/Bar-end)
Stem Giant Contour EVO integrated 16° NEW (S/M:80mm L/XL/XXL 100mm)
Seatpost Giant Contact Switch Dropper Seatpost 100mm Travel
Saddle Selle Royal Vivo Ergo Moderate Unisex
Pedals Anti-slip Platform
Accessories & Extras Aegis Tire Checker. On-board Tire Pressure Management System (TPMS), LightingSupernova Mini 3 [F] Rear Rack Integrated tail light [R], Lock: ABUS Xplus battery lock, Carrier: MIK HD System rack. Child seat, bag & basket compatible
Motor Giant SyncDrive Pro2, 85Nm PedalPlus 6-Sensor technology
Battery Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible (exclude STA frame)
Controller/Display Giant RideControl Go 2 Giant RideControl Ergo4 Remote Left & Right, Giant RideDash EVO 2.0, high-angle visibility, 3" full color LCD display, on-board navigation
Charger Giant EnergyPak 4A smart charger compact, 60% charge in 2:30h

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Metallic Navy / Medium / 700c 04711291246317 5060025155 210000047711
Metallic Navy / Large / 700c 04711291246324 5060025157
Metallic Navy / X-Large / 700c 04711291246331 5060025158
