Details

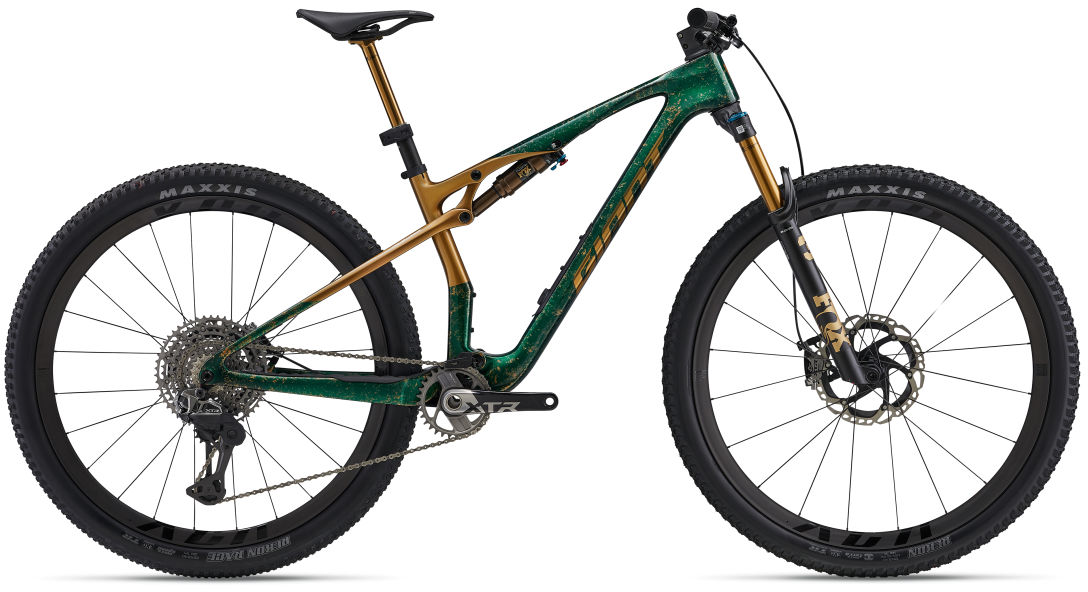

Developed to help Giant pro Alan Hatherly win the 2025 Elite Men’s XCO World Championship, this superlight XC composite flyer is engineered with a semi-integrated 120mm FlexPoint Pro rear suspension system and a flip chip to adjust geometry for any racecourse or XC terrain.
RACE-BRED TRAIL SPEED
A full-composite frameset is both ultra-light and highly efficient to help you power up climbs and make every watt count. The WheelSystems and integrated handlebar/stem units are designed for maximum efficiency and instantaneous response to rider input. The rear shock is repositioned and semi-integrated with the top tube, shaving weight and creating space for a second water bottle cage.
TOTAL CONTROL
The new FlexPoint Pro suspension delivers 120mm of smooth, active rear travel paired with a 130mm fork—helping you fly down rough descents and power up technical climbs. A flip chip lets you fine tune handling for all types of terrain. Superlight composite or alloy Giant WheelSystems (depending on model) with a next-generation 120-tooth helical ratchet drive system for immediate power and robust 5mm rim sidewalls for greater protection against impacts and punctures.
SYSTEM INTEGRATION
A new one-piece integrated handlebar/stem unit adds compliance to reduce shocks and vibrations, improving control and hand comfort. It’s available in two models—the Contact SLR XC Integrated composite and Contact SL XC Integrated alloy. Both feature the same seamless cable routing and versatile sizing with a 780mm standard width and stem lengths ranging from 50-90mm.
| Frame Size | M | L | XL |
|---|---|---|---|
| Seat Tube Length (mm) | 420 | 465 | 495 |
| Seat Tube Angle | 75.1° | 75.5° | 75.1° | 75.6° | 75.1° | 75.6° |
| Top Tube Length (mm) | 603 | 602 | 625 | 624 | 653 | 651 |
| Head Tube Length (mm) | 95 | 105 | 115 |
| Head Tube Angle | 66.1° | 66.5° | 66.1° | 66.6° | 66.1° | 66.6° |
| Fork Rake (mm) | 44 | 44 | 44 |
| Trail (mm) | 119.3 | 115.6 | 119.2 | 115.5 | 119 | 115.4 |
| Wheelbase (mm) | 1172 | 1171 | 1196 | 1195 | 1225 | 1224 |
| Chain Stay Length (mm) | 437 | 435 | 437 | 435 | 437 | 435 |
| Bottom Bracket Drop (mm) | 48 | 42 | 48 | 42 | 48 | 42 |
| Stack (mm) | 611 | 607 | 620 | 616 | 629 | 625 |
| Reach (mm) | 440 | 445 | 460 | 465 | 485 | 490 |
| Stand Over Height (mm) | 770 | 776 | 762 | 769 | 757 | 764 |
| Handlebar Width (mm) | 780 | 780 | 780 |
| Stem Length (mm) | 50 | 60 | 70 |
| Crank Length (mm) | 170 | 175 | 175 |
| Frame Size | Rider Height |
|---|---|
| M | 171cm - 180cm |
| L | 179cm - 188cm |
| XL | 187cm - 198cm |
Specs
| Frame | Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle, internal storage |
|---|---|
| Fork | Fox 34 SL Factory, 130mm, GRIP X damper, Boost 15x110, 44mm offset |
| Rear Shock | Fox Float SL Factory, 210/50 |
| Tires | Maxxis Rekon Race 29x2.4, foldable, 120tpi, EXO, tubeless |
| Brakes | Shimano XTR BR-M9220, hydraulic, Shimano RT-MT905 rotors [F]203mm, [R]180mm |
| Rims | Giant XCR WheelSystem |
| Crankset | Shimano XTR FC-M9200, 32t, 55mm chainline S:170mm, M:170mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano XTR |
| Shifters | Shimano XTR Di2 SW-M9250, 1x12 |
| Cassette/Freewheel | Shimano XTR CS-M9200, 10x51v |
| Rear Derailleur | Shimano XTR Di2 RD-M9250 |
| Brake Levers | Shimano XTR BL-9220 |
| Handlebars | Giant Integrated XC, composite, 780mm, 9-degree upsweep |
| Chain | Shimano XTR CN-M9100 |
| Tape/Grips | Giant Tactal, lock on |
| Stem | Giant Integrated XC Carbon S:50mm, M:50mm, L:60mm, XL:70mm |
| Seatpost | Fox Transfer NEO, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 395mm |
| Saddle | Giant Grit SLR |
| Pedals | Sold Separately |
| Accessories & Extras | Tubeless prepared, 2.4" max tire size, 34t max chainring size, MRP 1x CS chain guide |
| Hubs |
Front: Giant MTB alloy, 6-bolt Rear: Giant MTB alloy, 6-bolt |
| Spokes | Carbon |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Mossed Dunite / Large / 29-inch | 04711291211568 | 1008015107 | 210000048255 |
